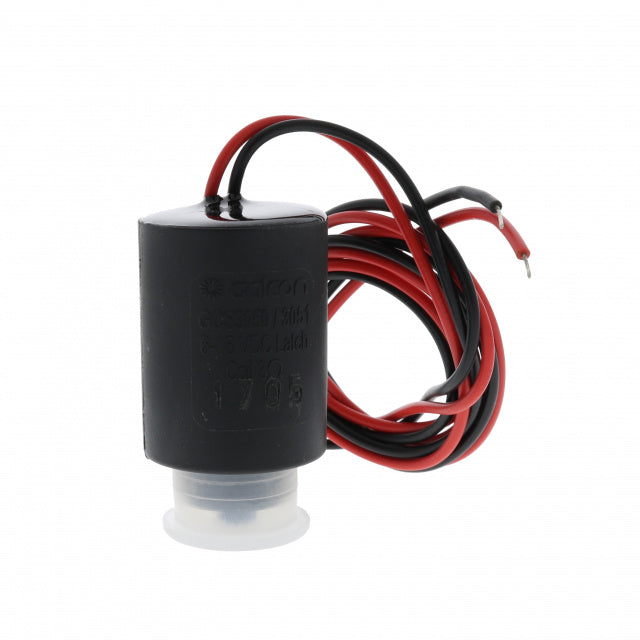

S1602 DC latching solenoid

This Galcon S1602 Series DC Latching Solenoid is a two-way magnetic latching solenoid that is designed for 2-wire normally closed valves and battery operated controllers. Solenoid has 31" red/black wire leads.

Specifications:

• Coil Resistance: 3.0Ω, minimum pulse 20-100 mS duration at 6-18 volts
• Solenoid Thread: 3/4-20
• Operating Pressure: 10-145 PSI
• Control Orifice: 1.65 mm (0.65″)
• Operating Temperature Range: 41°F to 158°F
• Nylon reinforced plastic housing
• EPDM seals and plunger cap
• Buna-N O-ring
